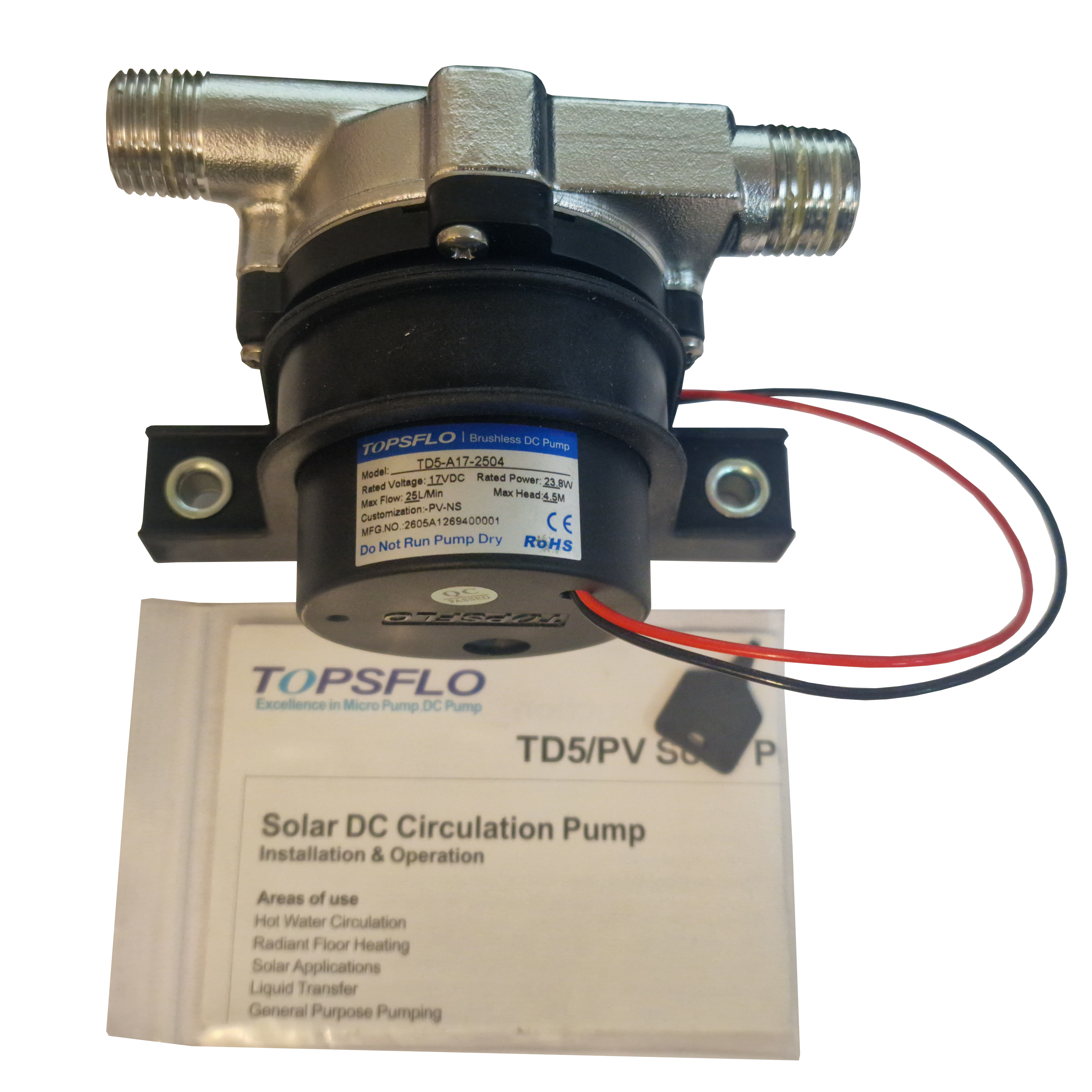

TD5 WATER PUMP SIMILAR TO JABSCO/LOWARA/LAING LOW VOLTAGE

This is a very high quality water pump, with a range of applications.

Areas of use

Hot Water Circulation Radiant Floor Heating Solar Applications Liquid Transfer General Purpose Pumping

Main features

Voltage: 6V-24V DC (Rated:17V DC) Max working temperature: 110°C (230°F) Max system pressure: 1 OBar Low noise: :S50dB(A) at 1m distance

Long life brushless pump with energy efficient technology Soft start at very low in-rush current, convenient working directly with PV panel Min start-up power consumption less than 2 watts Advanced magnetic drive technology for static-sealed, without any leakage forever High efficiency ECM brushless DC motor with long lifetime 30,000 hours Heavy duty work. can sustain continuously 24 hours’ work Low power consumption, low or no maintenance

Motor protective functions:

Over voltage protection The drive circuitry is protected against excessive voltage over 28V automatically. b. Over load protection The drive circuitry is protected against excessive current and load automatically. c. Blocked protection The drive circuitry is protected against the pump blocked automatically. d. Polarity protection The drive circuitry is protected against the wire in reverse
